Our Legacy
Information about past Antipodes models, their features and upgrade options.
OLDER MODELS
Click on your model below to see the model's details.
K40 | K30 | S40 | S30 | S20 | S60 | K10 | CX | EX | P1 | P2 | DX3 | CORE | EDGE | DS3
All older models can, and should be, kept up-to-date with the latest software suite, so that Antipodes Audio can continue to provide remote support.
EARLY MODELS
Click on your model below to see the model's details.
Models released prior to 2017 were designed to run the light playback applications that prevailed at the time, such as Squeeze and MPD, and they were designed to perform both the Server and Player functions.
Models sold prior to 2014 used 32-bit processors and so cannot be upgraded to use the current AMS suite. They are restricted to running the Vortexbox software suite. The suppliers of Vortexbox software no longer provide support and updates, but these music servers can still be used.
Even early 64-bit processor models can have problems running the latest server applications from Roon and HQPlayer, due to the computation power required.
For these reasons, the early models are suited, either for use with Squeeze or MPD, or for running only the Player application (using a more powerful device for the server app).
If you have an early model, we highly recommend that you contact us to discuss possible trade-in options.

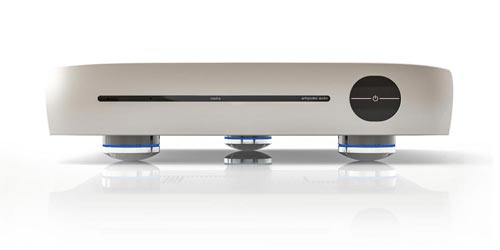

ANTIPODES - OLADRA
Server – Player
Released 2022
Dual Computer
Three User Installable SSDs
Outputs: Direct Ethernet, USB, AES3, S/PDIF, I2S
Internal Power Supply
The Oladra incorporates an exceptional and powerful computing engine to run Server apps, and an exceptional low-power computing engine to run Player apps. The two computing engines are optimally connected internally. All digital outputs are isolated, buffered and regenerated.
This model will be eligible for a Gen5 upgrade when that programme is announced.

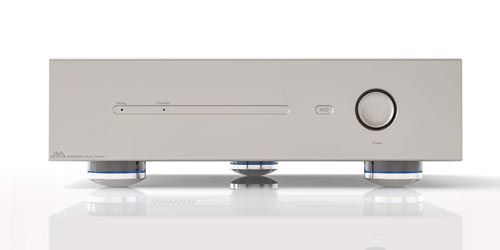

KALA 50
Server – Player
Released 2020
Dual Computer
Three User Installable SSDs
Outputs: Direct Ethernet, USB, AES3, S/PDIF, I2S
Internal Power Supply
The KALA 50 incorporates a powerful computing engine to run Server apps, and an exceptional low-power computing engine to run Player apps. The two computing engines are optimally connected internally.
This model will be eligible for a Gen5 upgrade when that programme is announced.

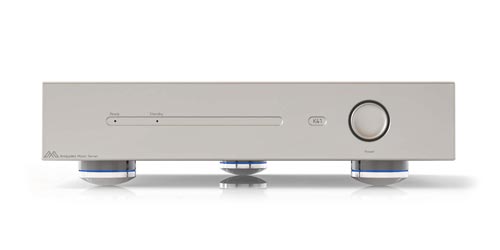

KALA 41
Server Only
Released 2022
Single Computer
Three User Installable SSDs
Outputs: Direct Ethernet
Internal Power Supply
The KALA 41 incorporates a powerful computing engine to run Server apps, and is intended for direct Ethernet connection to a separate player or the Ethernet input on a DAC. All digital outputs are isolated, buffered and regenerated.
This model will be eligible for a Gen5 upgrade when that programme is announced.

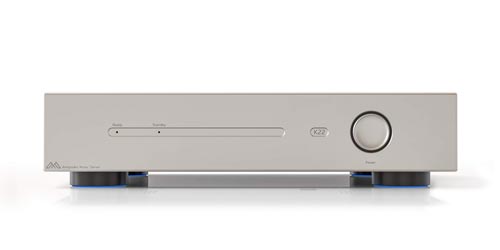

KALA 22
Server Player
Released 2020
Single Computer
One User Installable SSDs
Outputs: Direct Ethernet, USB, AES3, S/PDIF, I2S
Internal Power Supply
The KALA 22 incorporates a exceptional low-power computing engine to run Server and Player apps. Because of its low power, the K22 is not suitable for managing very large libraries, or running demanding DSP functions and cannot be to run HQPlayer Server. All digital outputs are isolated, buffered and regenerated.
This model will be eligible for a Gen5 upgrade when that programme is announced.

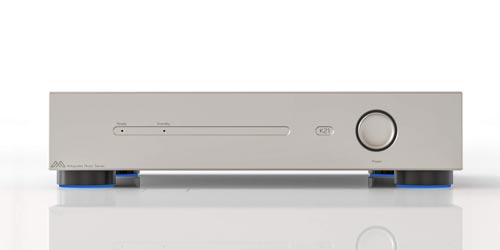

KALA 21
Server Player
Released 2020
Single Computer
One User Installable SSDs
Outputs: USB
Internal Power Supply
The KALA 21 incorporates an exceptional low-power computing engine to run Server and Player apps. Because of its low power, the K21 is not suitable for managing very large libraries, or running demanding DSP functions and cannot be to run HQPlayer Server. The USB output is isolated, buffered and regenerated.
This model will be eligible for a Gen5 upgrade when that programme is announced.

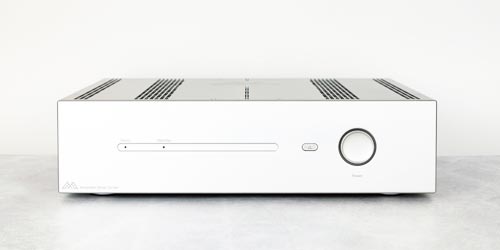

KALA 40
Server Only
Released 2022
Single Computer
Three User Installable SSDs
Outputs: Direct Ethernet
Internal Power Supply
The KALA 40 incorporates a powerful computing engine to run Server apps, and is intended for direct Ethernet connection to a separate player or the Ethernet input on a DAC.
This model will be eligible for a Gen5 upgrade when that programme is announced.

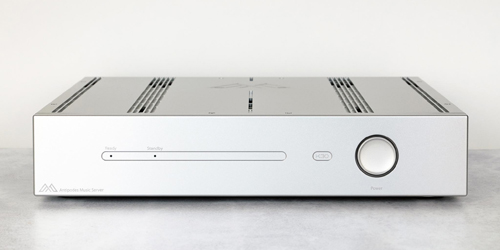

ANTIPODES - K30
Server – Player
Released 2020
Dual Computer
Two User Installable SSDs
Outputs: Direct Ethernet, USB
Internal Power Supply
The K30 incorporates a powerful computing engine to run Server apps, and an exceptional low-power computing engine to run Player apps. The two computing engines are optimally connected internally.
This model will be eligible for a Gen5 upgrade when that programme is announced.

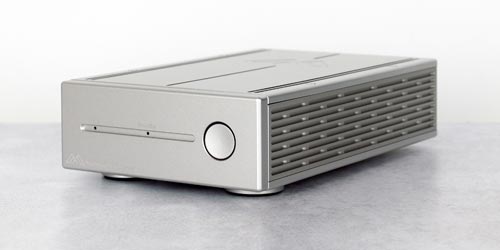

ANTIPODES - S40
Server – Player
Released 2020
High-Power Single Computer
One Installable SSD
Outputs: Direct Ethernet, USB
External Power Supply
The S40 uses a powerful computing engine to run both Server apps and Player apps.
This model will be eligible for a Gen5 upgrade when that programme is announced.

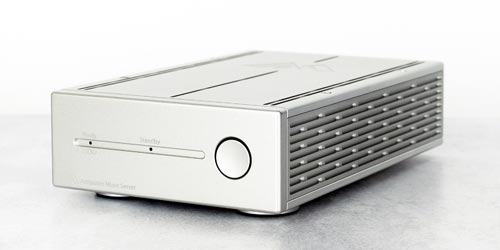

ANTIPODES - S30
Server – Player
Released 2020
Low-Power Single Computer
One Installable SSD
Outputs: Analog, USB
External Power Supply
The S30 uses a medium-power computing engine to run both Server apps and Player apps.
This model will be eligible for a Gen5 upgrade when that programme is announced.

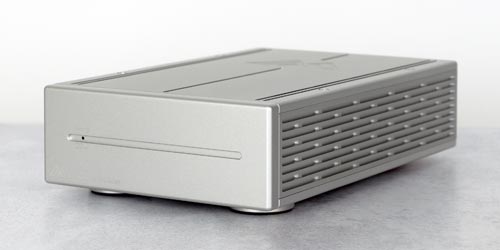

ANTIPODES - S20
Reclocker
Released 2020
Femto-Second Clock
USB Input
Outputs: S/PDIF, AES3, I2S
External Power Supply
An S20 can be added to any S30 or S40 and provide re-clocked synchronous outputs. Its design focus was to be a re-clocker for an Antipodes S30.
There are no upgrades planned for this model.

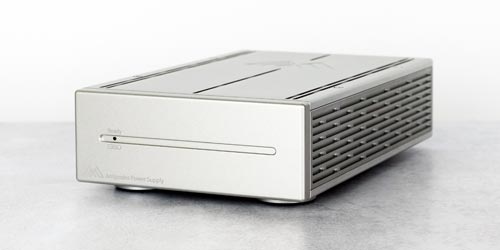

ANTIPODES - S60
Power Supply
Released 2020
Internal Power Supply
Outputs: 2 x 12vdc Outputs, 60W Total
The S60 was designed to power the S30, S40 and S60.
This model will be eligible for a Gen5 upgrade when that programme is announced.

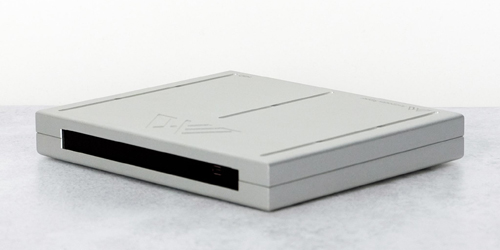

ANTIPODES - K10
Ripper
Released 2020
External USB Ripper
USB Powered
The K10 uses our latest technology, but is not a current model because a part that is critical to its performance is no longer available. We retain plenty of parts for repairs. A K10 can be added to any Antipodes Music Server to provide high-quality auto-ripping of CDs. There are no upgrades planned for this model.

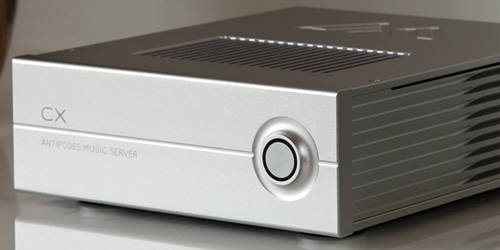

ANTIPODES - CX
Server – Player
Released 2018
High-Power Single Computer
Two User Installable SSDs
Outputs: Direct Ethernet, USB
Internal Power Supply
The Antipodes CX can perform both Server and Player functions, but its design focus was on it being a world-class Server, playing to a DAC’s Ethernet input, or to an Antipodes EX performing the Player function.
This model will be eligible for a Gen5 upgrade when that programme is announced.

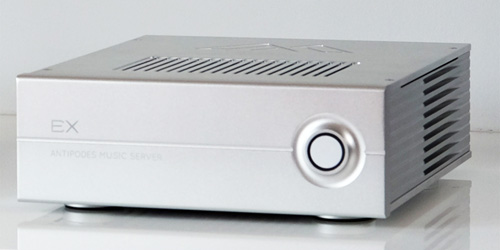

ANTIPODES - EX
Server – Player
Released 2018
Medium-Power Single Computer
Two User Installable SSDs
Outputs: Analog, USB
Internal Power Supply
The Antipodes EX can perform both Server and Player functions, but its design focus was on it being a world-class Player, playing from an Antipodes CX performing the Server function.
This model will be eligible for a Gen5 upgrade when that programme is announced.
ANTIPODES - P1
Ripper
Released 2018
External USB Ripper
USB Powered
A P1 can be added to any Antipodes Music Server to provide high-quality auto-ripping of CDs. Its design focus was to be a ripper for an Antipodes CX. There is no upgrade planned for this model.
ANTIPODES - P2
Re-Clocker
Released 2018
Femto-Second Clock
USB Input
Outputs: S/PDIF, AES3, I2S
USB Powered
A P2 can be added to any Antipodes Music Server and provide re-clocked synchronous outputs. Its design focus was to be a re-clocker for an Antipodes EX. There is no upgrade planned for this model.

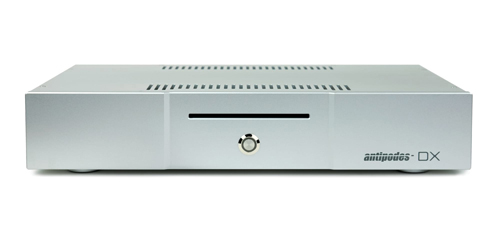

ANTIPODES - DX3
Server – Player
Released 2017
Medium-Power Single Computer
2 Internal SSDs
Outputs: USB
Internal Power Supply
The DX3 is based on the EX, with an in-built ripper, and with a superior power supply. Its design focus is to equally support the Server and Player functions, provided the user does not wish to use the demanding DSP features in Roon Server and HQPlayer Server Embedded.
This model may be eligible for a Gen5 upgrade when that programme is announced.

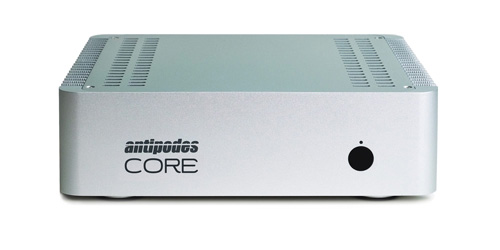

ANTIPODES - CORE
Server – Player
Released 2017
High-Power Single Computer
Two User Installable SSDs
Outputs: USB
External Power Supply
The Antipodes CORE can be used for both Server and Player functions, but its design focus was on it being a world-class Server, playing to a DAC’s Ethernet input, or to an Antipodes EDGE performing the Player function.
There is no planned upgrade for this model.

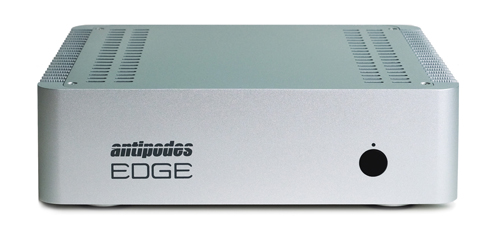

ANTIPODES - EDGE
Server – Player
Released 2017
Medium-Power Single Computer
Two User Installable SSDs
Outputs: Analog, USB
External Power Supply
The Antipodes EDGE can be used for both Server and Player functions, but its design focus was on it being a world-class Player, playing from an Antipodes CORE performing the Server function.
There is no planned upgrade for this model.
ANTIPODES - DS3
Server – Player
Released 2016
Medium-Power Single Computer
2 Internal HDDs or SSDs
Outputs: Analog, USB
External Power Supply
Variants: DS3, DSGT, DS-X & DS-Core (High-Power)
The DS3 is a cut-down version of the DX3, with an in-built ripper, and with a choice of external power supplies. Its design focus is to equally support Server and Player function, provided the user does not wish to use the demanding DSP features in Roon Server and HQPlayer Server Embedded.
The DSGT is a hot-rod version of the DS3, including an outboard linear power supply. The DS-X lifts the DS3 performance level to the DX3 level. The DS-Core upgrades the internal computing engine to the power level of the Antipodes CORE.
There is no planned upgrade for this model.

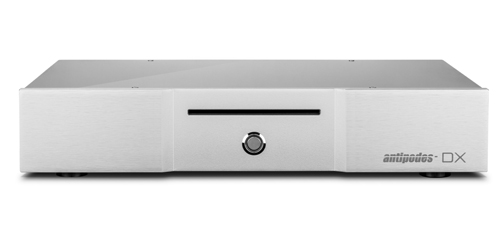

ANTIPODES - DX
Server – Player
Released 2014
Low-Power Single Computer
Outputs: USB
Internal Power Supply
Variants: DX1 & DX2
The DX was a Stereophile Class A+ Recommended Component, and won several other awards from leading magazines.
There is no planned upgrade for this model.

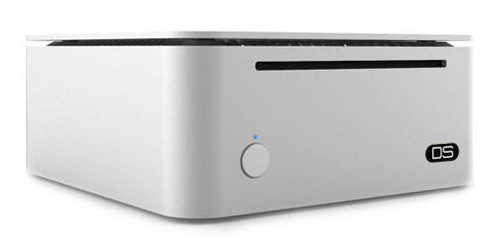

ANTIPODES - DS2
Server – Player
Released 2014
Low-Power Single Computer
Outputs: USB
External Power Supply
There is no planned upgrade for this model.

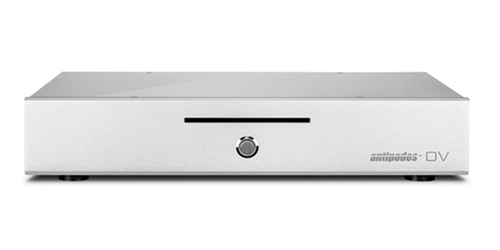

ANTIPODES - DV
Server – Player
Released 2011
Low-Power Single Computer
2 Internal Hard Drives
Outputs: USB
Internal Power Supply
There is no planned upgrade for this model.

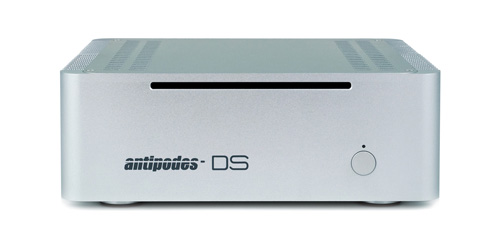

ANTIPODES - DS
Server – Player
Released 2011
Low-Power Single Computer
2 Internal SSDs or Hard Drives
Outputs: USB
Internal Power Supply
Variants: DS, DS Reference
The DS came with a choice of external power supplies, and the DS Reference included a number of upgrades, with the most notable being a high-quality internal linear power supply. The DS Reference was the first Music Server to ever be given a 6moons Blue Moon award.
There is no planned upgrade for this model.
